    DynAmp BRP

    DynAmp BRP

    The new, BRP rectifier protection system is a specialized modular system designed to sense reverse and over current events on high current DC bus bars. This next generation system is Dynamp’s next-generation technology developed to replace the older BCMR systems. BRP utilizes a pair of sensors, mounted on opposite sides of the DC bus bar. These advanced sensors incorporate 30 years of experience and new proprietary magnetic shielding technology to dramatically improve signal to noise ratios and practically eliminate chances of false alarms.


    Key Features

    Minimizes impact of external magnetic fields to reduce false alarms.

    Dramatically improves signal to noise ratio for high dependability.

    Simplifies installation and allows application to a wide variety of bus bar sizes.

    24V logic reverse alarm output

    Latching reverse alarm output with LED indication and manual reset button

    Two user adjustable over current alarms with dry contact relay outputs

    Power relay for direct activation of protection equipment

    Dramatically simplified as compared to BCMR



    BRP Versions

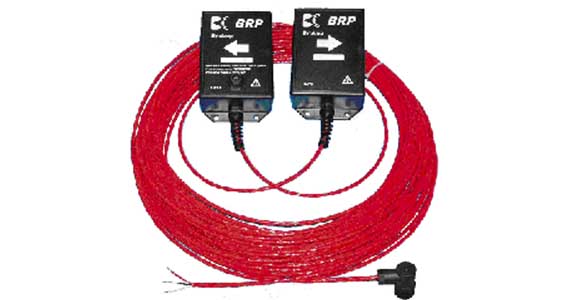

    BRP: Sensor pair with 24V signal output including 30m signal cable and connector

    BRP L: Sensor Pair + Latching function Module. Adds output signal latching and LED indication to the reverse current detection function. This ensures that users are able to identify which specific rectifier caused the reverse current trip, which must be manually reset before continuing. DIN rail mount.

    BRP PE: Sensor Pair + Latching & Over Current Module. In addition to BRP L latching functions, each with their own dry contact relay output. DIN rail mount.



    Optional Power Relay

    Special high-power, electro-mechanical relay to provide reliable switching of higher power loads, particularly those controlled by 120VDC. This optional relay can be directly driven by the BRP reverse current signal in all versions as well as the lighter duty over current relays in the BRP PE version. DIN rail mount.

    Optional Universal Power Supply

    Provides the main 24V DC power required by all BRP systems in applications where 24V DC is not already available.



    Optional IP67 Enclosure

    For protecting BRP Modules , Power Relays and Universal Power Supply when installed in demanding environmental conditions



    Specifications



    BRP: Basic Rectifier Protection

    Trip point -7.5kA ±2.5kA

    Response time < 1mS

    Signal Output Fail-safe Logic +24VDC 100mA max.

    drops to 0 VDC upon reverse alarm

    returns to +24VDC 200mS after

    reverse current event ends

    Mains Power 22…26Vdc, 25mA, <1.0W nominal

    Protection Output : over-current, short circuit

    Power Input : reverse polarity,

    over-voltage, ESD

    Isolation 5kV bus bar to output

    Protection Class IP67

    Operating Temp. -20o to +95oC ( -4oF to 203oF)

    Storage Temp. -40o to +95oC (-40oF to 203oF)

    ( higher temp. operation possible

    via ‘stand-off’ sensor pair mounting)

    Humidity 0-95% non-condensing (max)

    Input / Output M12 Receptacle on Master Sensor

    Interconnect Cable Right angle M12 plug (one end)

    un-terminated (other end)

    18AWG, foil shield, FEP Jacket,

    30m (98.4 ft)

    Sensor Size 140mm x 82mm x 53mm x 2 sensors

    (5.5”H x 3.2”W x 2.1”D )

    Weight 2.3kg (5 lbs) total ( sensor pair )

    Sensor Mounting Screw mount directly to bus



    BRP L : Basic Rectifier Protection

    with Latching Reverse Current Alarm Module

    Adds the following features and specifications to

    Basic Rectifier Protection Sensor Set

    Signal Output LED indication and reverse alarm

    Manual push button required

    to clear LED and alarm signal

    Mains Power 22…26Vdc, 25mA, (excluding load) <1.0W ( same as Sensor Set )

    Signal Input Interconnect cable from Sensor Set to

    screw terminals on module

    Signal Output Via screw terminals on module

    Environmental IP21

    Module Size 42 x 99 x 115mm

    Mounting Standard DIN rail



    BRP PE : Basic Rectifier Protection

    With Latching Reverse Current Alarm Module and

    and 2 Adjustable Over Current Alarms

    Adds the following features and specifications to

    Basic Rectifier Protection Sensor Set with

    Reverse Current Alarm Latching Module

    2 Over Current Alarms Adjustable from 10kA to 120kA

    Alarm Contacts SPDT 250VAC / 30VDC 3A

    Signal Input Interconnect cable from Sensor

    Set to screw terminals on module

    Signal Output Via screw terminals on module

    Environmental IP21

    Module Size 42 x 99 x 115mm

    Mounting Standard DIN rail



    Option Specifications



    Optional Power Relay for Reverse or Over Current Alarms

    (specially designed for reliable operation with higher power AC and DC loads )

    Response time : <1mS

    Power handling : 2A at up to 150VDC / 300VAC

    Environmental : IP21

    Relay Size 44 x 44 x 77mm high including socket

    Optional Universal Power Supply

    ( provides 24VDC to BRP if not available on-site )

    Input : 90…350 VDC and 85…264 VAC 47…440Hz

    Output : 24VDC

    Environmental : IP21

    Module Size 23 x 99 x 115mm

    Optional IP 67 Enclosure

    ( improves IP rating of IP21 rated components )

    Size 254mm H x 175mm W x 112mm D

    Environmental IP21

    Mounting Screw mount directly to wall or panel


    Required Ordering Information

    Select BRP system version : 1, 2 or 3

    1) Basic Rectifier Protection

    BRP Specify Item 44304

    2) Basic Rectifier Protection with

    Latching Reverse Current Alarm Module

    BRP L Specify Item 44305

    3) Basic Rectifier Protection with

    Latching Reverse Current Alarm Module

    and 2 Adjustable Over Current Alarms

    BRP PE Specify Item 44516

    Add Desired Options

    Optional Power Relay

    ( one per alarm output as desired )

    Specify Item 44306

    Optional Universal Power Supply :

    Specify Item 44307

    Optional IP 67 Enclosure for Optional Modules, Relays

    and Universal Power Supply

    Specify Item 44540

    Complete BRP Worksheet BEN082
